High Speed Broaching Machines : Ty Miles Inc.



Ty Miles Inc. offers a full line of various sizes of new broaching machines. We also update, modernize, and re-tool existing broach machines, by using the latest, state of the art, hydraulic, pneumatic, and electrical components that are available. We also offer "IN HOUSE" Production Broaching Capability, for either Short or Long Term Production Runs.

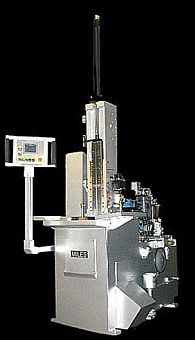

CNC Broaching Machine

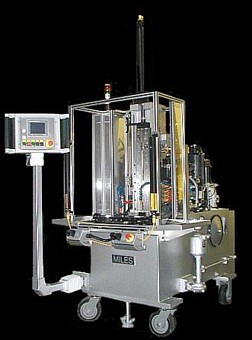

Table Up Broach Machine
 MRS24-48-90          MBTU20-36-60R
CNC Broaching Machine Table Up Broaching Machine
CNC Controlled ROLLER SCREW MACHINE offers precise control over the location and speed of the broach and fixture... coupled with a CNC controlled fixture table to produce intricate forms and / or other typical broach cuts with standard broaching tools. Ideal for flexible cell users since loading is done at operator waist height. Broaching tool firmly anchored at both ends during the cut. Fixtured part PULLED UP over a stationary broaching tool. Massive 4-poster die set type machine construction insures straight line broach pull.

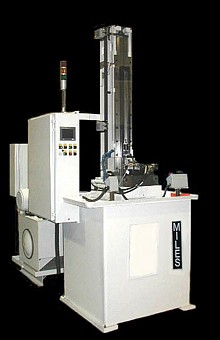

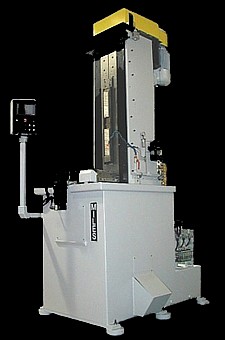

Broaching Machine :36 stroke Broach Machine :36 stroke
MBLD10-36-120R  MB10-36-120R
Broaching Machine : 36" Stroke Broach Machine : Standard 36"
This model is a 5 ton machine, 36 of ram stroke, traveling at 120 FPM, tooled up with a hydraulic slide table. The 36 model is a very versatile machine, capable of both external and internal broaching applications. This is our standard model, shown as a 5 ton machine, 36 of ram stroke, traveling at 120 FPM. We offer our standard models, along with heavy duty models, depending on the tonnage required for the job.

Broaching Machine :24 stroke

Broach Machine :18 stroke
MBLD10-24-120R  MBLD4-18-150R
Broaching Machine : 24" Stroke Broach Machine : 18" Stroke
This model is a 5 ton machine, 24 of ram stroke, traveling at 120 FPM, tooled up with a magazine type fixture. The Rabbit line of light duty machines is available in either 12, 18, 24, 30, 36, 42, or 48 inches of ram stroke. This model is a 2 ton machine, 18 of ram stroke, traveling at 150 FPM, tooled up with a hydraulic tilt table. The 18 model can also be mounted on wheels, for easy mobility in your shop .
